Agricultural PTO Drive Shaft for Land Pride Snow Blower
Precision-built snow blower PTO shaft assemblies with shear bolt protection, engineered for reliable winter performance on every Land Pride model.
Core Function of the PTO Drive Shaft in Land Pride Snow Blowers

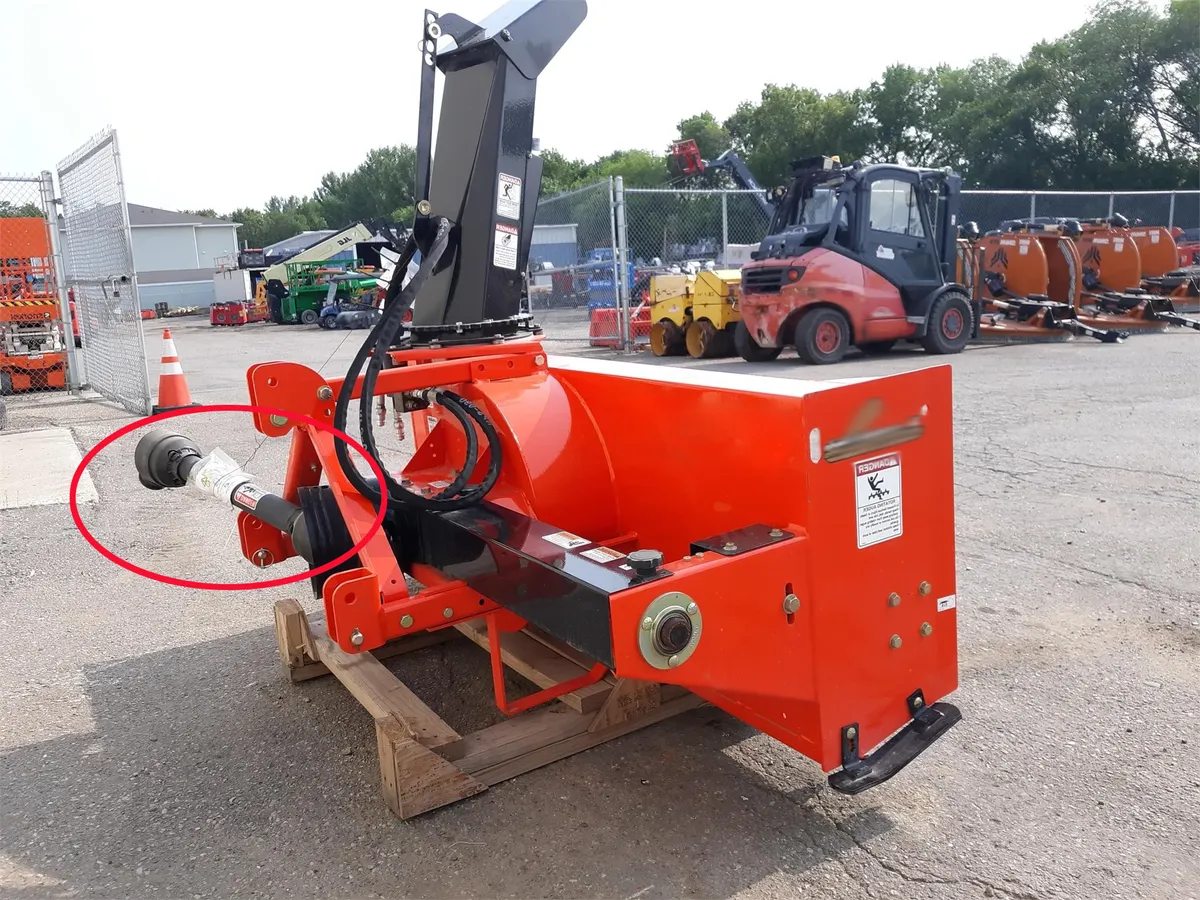

The PTO drive shaft for snow blower equipment acts as the primary mechanical connection between the tractor’s power take-off output and the snow blower’s internal gearbox. On Land Pride snow blowers, this tractor PTO shaft transfers rotational energy from the engine to the auger and impeller assembly, which are the two main components responsible for picking up, compressing, and throwing snow through the discharge chute.

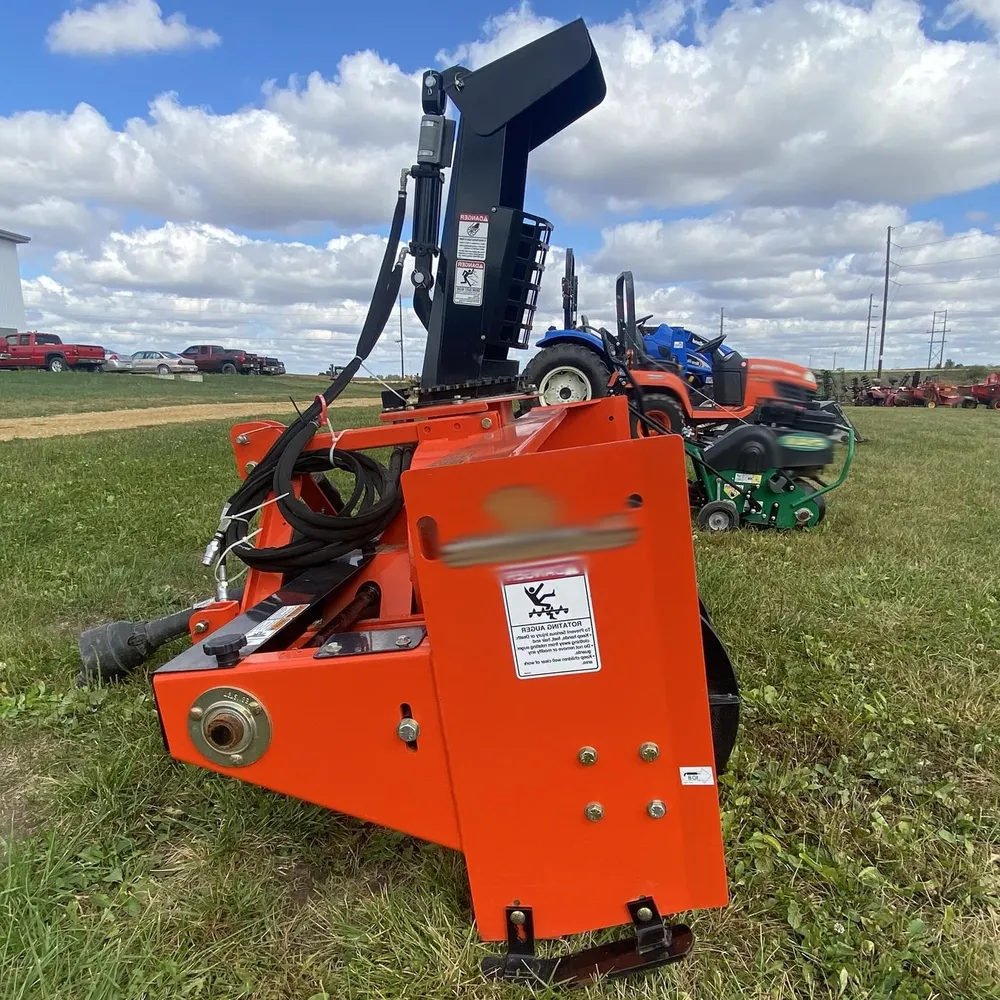

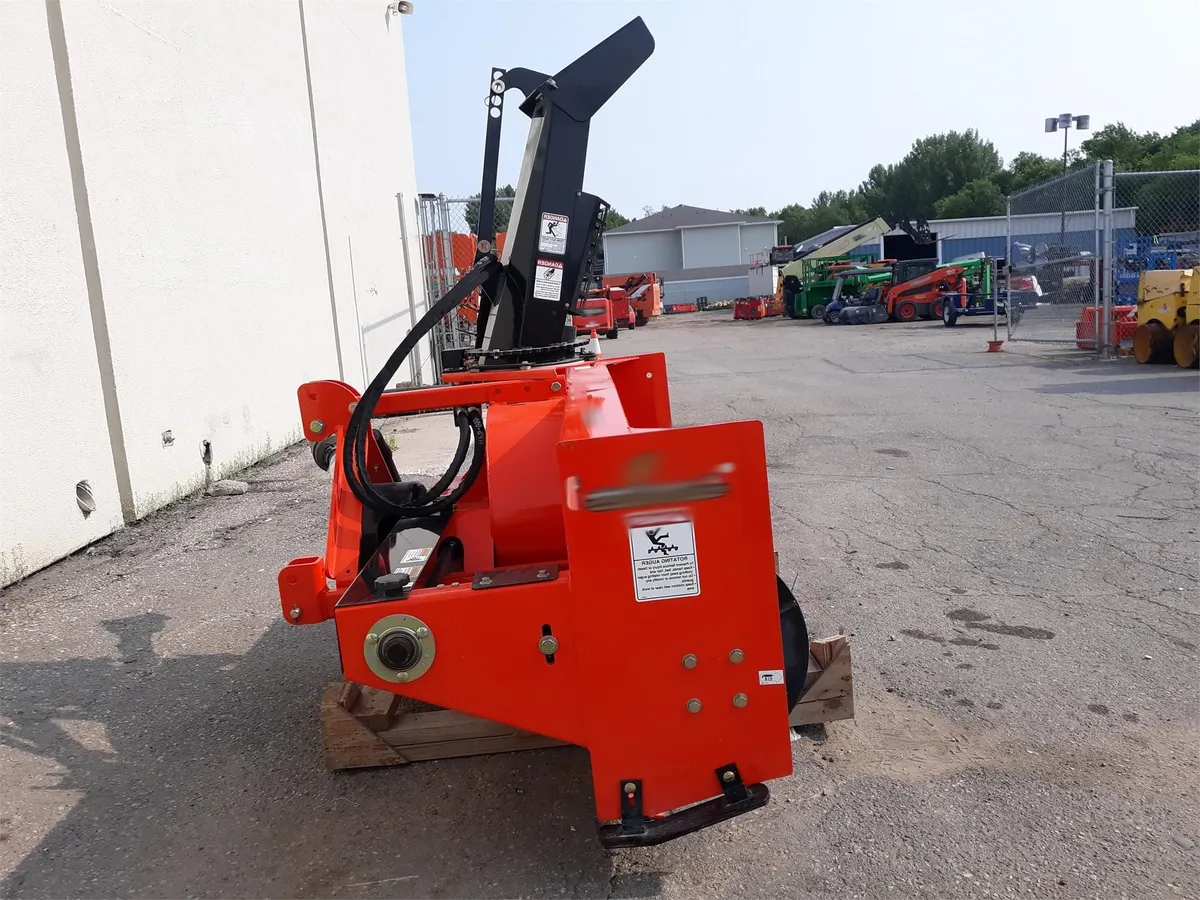

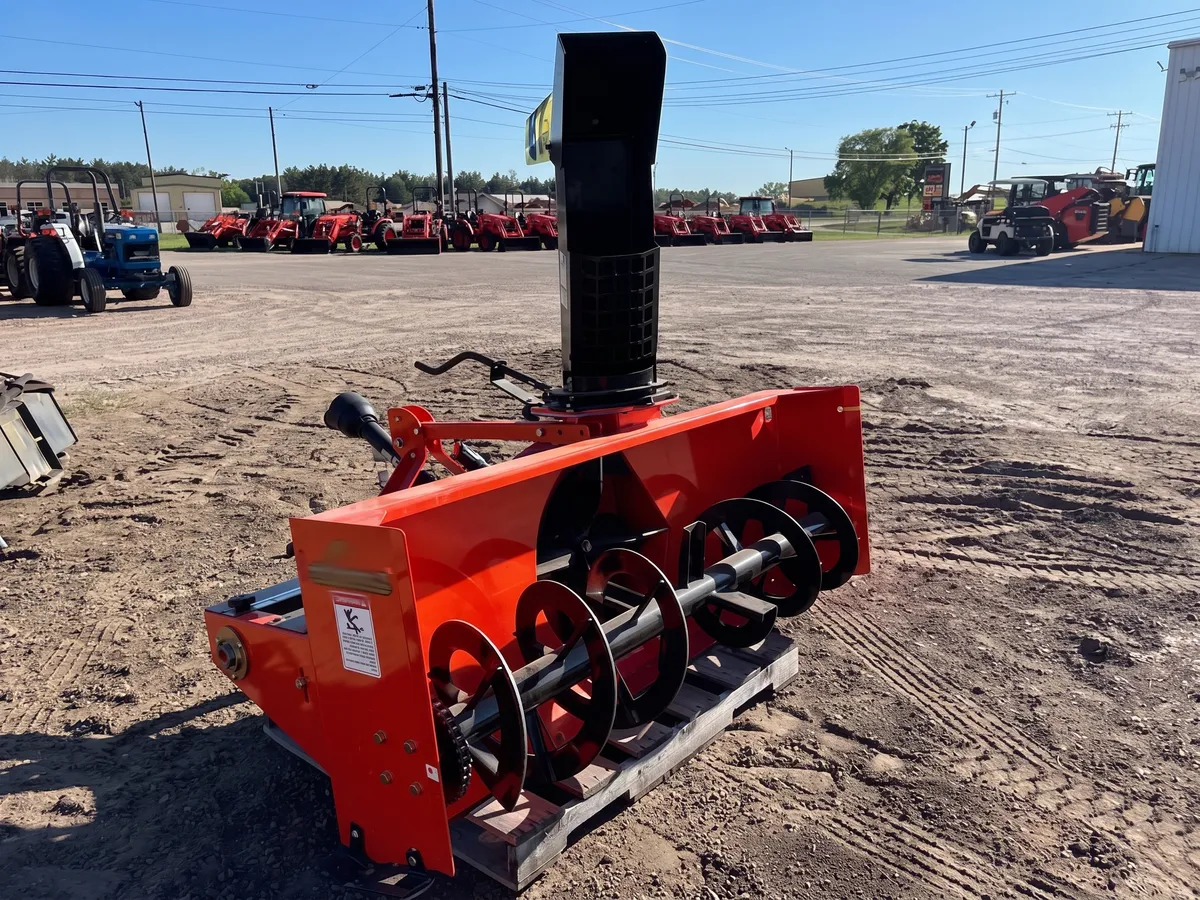

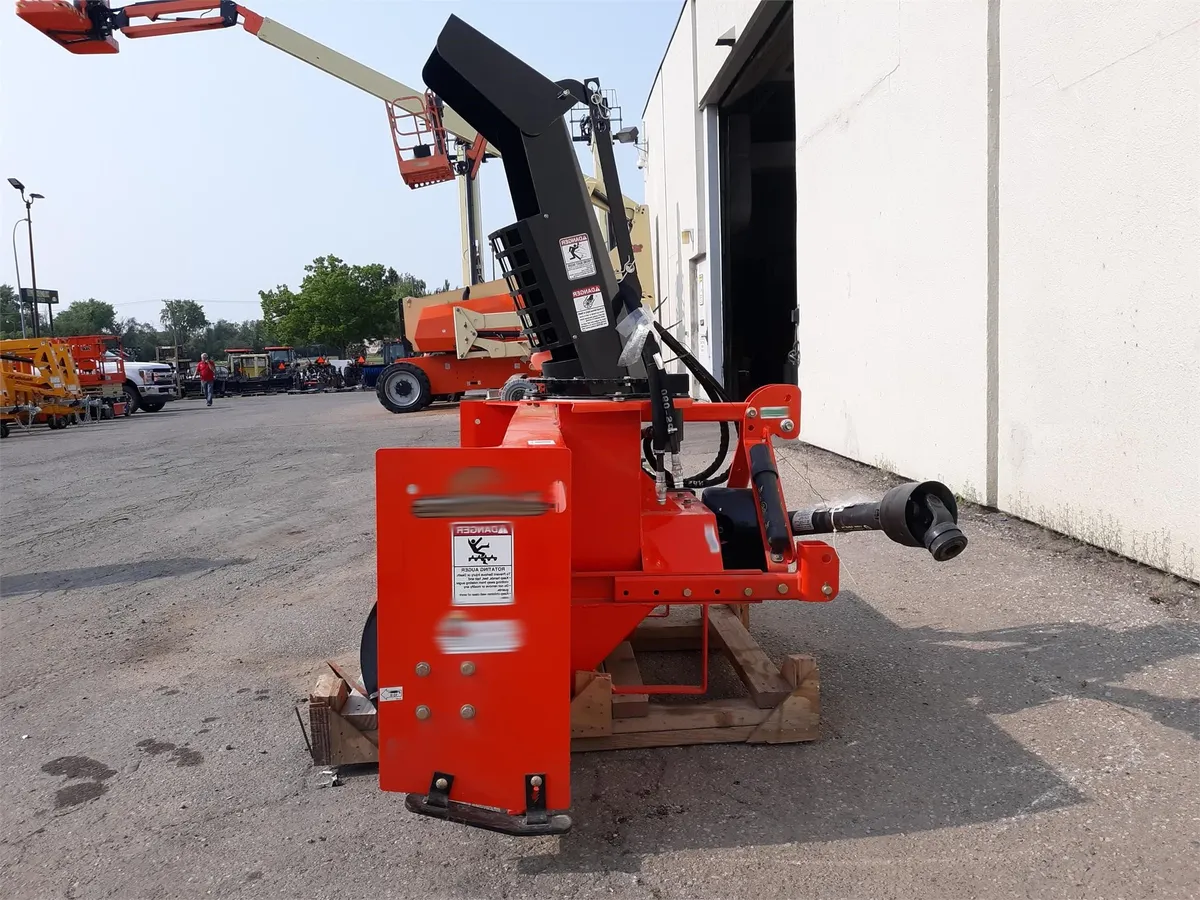

Land Pride manufactures a wide range of snow blower models, from compact residential units like the SB1051 (51-inch working width) up to commercial-grade machines like the SBP1684 (84-inch working width). Each of these models relies on a 540 PTO shaft running at 540 RPM to drive the snow clearing mechanism. Without a properly matched PTO driveline shaft, the auger cannot rotate at the correct speed, the impeller loses throwing distance, and the entire snow removal operation becomes inefficient or fails completely.
In practical field conditions across heavy snowfall regions like Canada, the northern United States, Scandinavia, and Russia, the snow blower PTO shaft endures significant cyclic loading. Packed snow, ice chunks, and hidden debris such as gravel, frozen soil, and fence wire place sudden shock loads on the driveline. This is why Land Pride snow blowers universally use a shear bolt PTO shaft as the standard overload protection method. When the auger encounters an immovable object, the calibrated shear bolt breaks before the torque can reach destructive levels inside the gearbox, saving the operator from a far more expensive repair.
Our PTO shaft for Land Pride snow blower assemblies are engineered as direct aftermarket replacements that match every critical dimension of the original driveline: spline profile, PTO category rating, overall assembled length, and shear bolt grade. Whether you operate a compact SBP1164 on a 25 HP sub-compact tractor or a heavy-duty SB2584 behind a 105 HP utility tractor, we build each agricultural PTO shaft to your exact machine configuration.
Technical Specifications
Below is a summary of the key parameters for our PTO shaft for snow blower assemblies covering Land Pride models. All specifications are customizable to match your tractor and implement requirements.
| Parameter | Specification / Customizable Range |
|---|---|
| Compatible Land Pride Models | SB1051, SB1064, SBP1164, SBP1174, SB1574, SB2584, SBP1664, SBP1674, SBP1684 |
| PTO Category | CAT 1 / CAT 2 / CAT 3 (model-dependent) |
| Tractor PTO Speed | 540 RPM |
| Minimum PTO Horsepower | 18 HP to 45 HP depending on model |
| Overload Protection | Shear Bolt (standard) / Slip Clutch (optional upgrade) |
| Tractor PTO Output Spline | 1-3/8″ x 6-spline (standard) |
| Cross and Bearing (U-Joint) Series | Series 2 (22 x 54 mm) / Series 4 (27 x 74.6 mm) / Series 6 (30.2 x 92 mm) |
| PTO Shaft Tube Profile | Triangular / Lemon (application-dependent) |
| Overall Assembled Length (OAL) | 30″ to 48″ closed (customizable to your machine) |
| PTO Shaft Guard | Included, CE-compliant plastic shield with bearing cones |
| Surface Treatment | Zinc plating / Powder coating / Painted (customer choice) |
| Driveline Shear Bolt | M8 x 50 C1.6.6 / M10 x 1.5 x 60 (model-dependent) |
| Drive Shaft Shear Bolt | 1/4″-20 Grade 5 / 5/16″-18 Grade 8 (model-dependent) |
| Tractor 3-Point Hitch Compatibility | Category I / Category I and II (adjustable) |
Model-Specific PTO Shaft Ratings
| Land Pride Model | PTO Category | PTO Speed | Min. PTO HP | Tractor HP Range | Working Width | Overload Protection |
|---|---|---|---|---|---|---|
| SB1051 | CAT 2 | 540 RPM | 18 HP | 18-32 HP | 51″ (1.30 m) | Shear Bolt |
| SB1064 | CAT 2 | 540 RPM | 18 HP | 18-59 HP | 64″ (1.63 m) | Shear Bolt |
| SBP1164 | CAT 1 | 540 RPM | 25 HP | 25-55 HP | 63.5″ (1.61 m) | Shear Bolt |
| SBP1174 | CAT 1 | 540 RPM | 25 HP | 25-55 HP | 73.5″ (1.87 m) | Shear Bolt |
| SB1574 | CAT 3 | 540 RPM | 30 HP | 30-59 HP | 74″ (1.88 m) | Shear Bolt |
| SB2584 | CAT 3 | 540 RPM | 43 HP | 43-105 HP | 84″ (2.13 m) | Shear Bolt |
| SBP1664 | CAT 3 | 540 RPM | 45 HP | 45+ HP | 64″ (1.6 m) | Shear Bolt |
| SBP1674 | CAT 3 | 540 RPM | 45 HP | 45+ HP | 74″ (1.9 m) | Shear Bolt |
| SBP1684 | CAT 3 | 540 RPM | 45 HP | 45+ HP | 84″ (2.1 m) | Shear Bolt |
For detailed part numbers and spline combinations, visit our Snow Blower PTO Shaft product page to explore the full catalog and request a custom configuration.
Compatible Snow Blower Brands for Direct Replacement
Our snowblower PTO shaft assemblies are designed as precision aftermarket replacements that fit directly onto a wide range of tractor-mounted snow blower brands. Whether you need a replacement of Land Pride PTO shaft or a cross-compatible driveline for another manufacturer’s equipment, our components match OEM spline dimensions, PTO category ratings, and overall assembled lengths.
| Brand | Compatible Snow Blower Models | Replacement PTO Category |
|---|---|---|
| Land Pride | SB1051, SB1064, SBP1164, SBP1174, SB1574, SB2584, SBP1664, SBP1674, SBP1684 | CAT 1 / CAT 2 / CAT 3 with shear bolt |
| John Deere | SB1148, SB1154, SB1164, SB1174, SB1184, SB1194, SB1274, SB1280, SB1308, SB1309, SB1388, SB1392 | CAT 1 / CAT 2 / CAT 3 with shear bolt |
| Woods | SB54S, SB64S, SB74C, SB84C, SS84-2, SS96-2, SS108-2 | CAT 1 / CAT 2 / CAT 3 with shear bolt |
| Frontier | SB1164, SB1174, SB1184 | CAT 1 / CAT 2 with shear bolt |
| Kubota | BX Series, B Series rear-mount snow blowers | CAT 1 / CAT 2 with shear bolt |
| Normand | N74, N86, N92, N98 | CAT 2 / CAT 3 with shear bolt |
| Pronovost | P Series, Puma Series | CAT 3 / CAT 4 with shear bolt or slip clutch |
Note: All brand names listed above are trademarks of their respective owners. They are referenced solely for the purpose of identifying compatible equipment and assisting with proper part selection. No affiliation or endorsement is implied.
Key Features and Advantages
Shear Bolt Overload Protection
Every PTO shaft with shear bolt assembly we produce for snow blower applications uses a calibrated bolt that breaks at a predetermined torque threshold. This prevents catastrophic damage to the snow blower gearbox, auger bearings, and drive chain when the machine encounters an immovable obstruction buried under the snow. The shear bolt PTO shaft design is simple, reliable, and inexpensive to reset. You replace the bolt, and the machine is back in operation within minutes.
Optional Slip Clutch Upgrade
For operators who clear snow in areas with frequent hidden obstacles such as gravel parking lots, railroad crossings, or construction sites, we offer a slip clutch PTO shaft upgrade. The PTO shaft slip clutch uses spring-loaded friction plates that momentarily slip under overload and then re-engage automatically once the obstruction is cleared. This eliminates the need to stop and replace a shear bolt after every event, keeping productivity high during long clearing sessions.
Precision-Machined Yokes and Splines
Each PTO shaft yoke is drop-forged from alloy steel and CNC-machined to tight tolerances. The standard 1-3/8″ x 6-spline profile is broached to ensure a snug, rattle-free fit on the tractor PTO output stub. Proper spline engagement prevents premature wear, eliminates backlash, and ensures smooth torque transfer from the tractor to the snow blower.

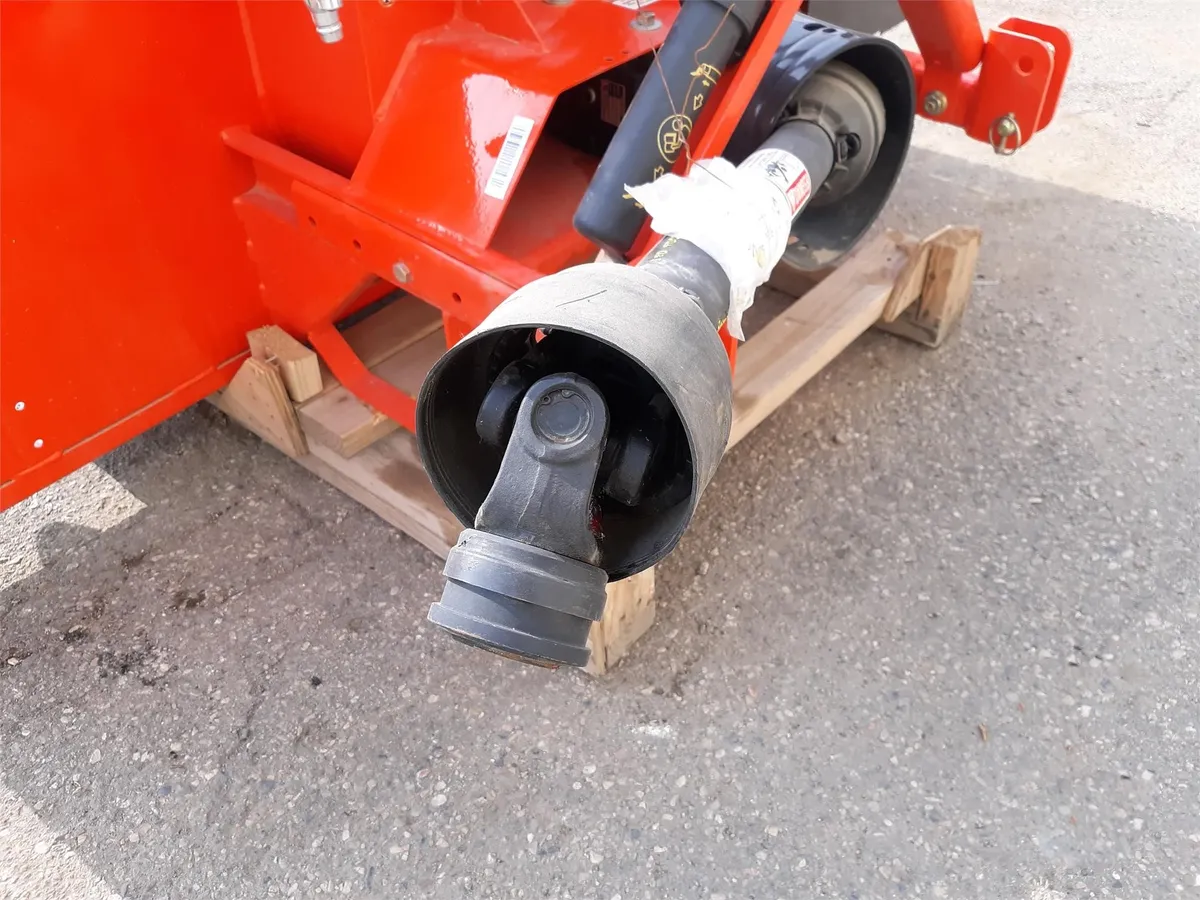

Full-Length Safety Guarding
Every assembly ships with a complete PTO shaft guard and PTO shaft cover system that meets CE and ISO safety standards. The plastic shield rotates freely on bearing cones at each end, preventing clothing, gloves, or scarves from becoming entangled with the rotating shaft. During winter operations, when operators often wear bulky cold-weather clothing, this guarding is especially critical for personal safety.
Corrosion-Resistant Surface Treatment
Snow blower PTO drive shafts operate in the harshest conditions: wet snow, road salt spray, sub-zero temperatures, and freeze-thaw cycles. Our driveline components receive zinc electroplating or heavy-duty powder coating to resist corrosion. Tube ends are sealed to prevent moisture ingress into the telescoping section, which is a common failure point on unprotected shafts stored outdoors during off-season months.
Heat-Treated Universal Joints
The PTO shaft universal joint bearings in every assembly are case-hardened to HRC 58-62 and fitted with needle-roller bearings for reduced friction and extended service life. Grease-sealed or greaseable PTO shaft u joint options are available. For high-use commercial snow removal operations, we recommend the greaseable version with zerk fittings for scheduled lubrication every 8 to 10 operating hours.
Customizable Length and Dimensions
We manufacture every PTO driveline shaft for snow blower to your exact PTO shaft length requirements. Snow blowers often mount closer to the tractor than other implements, requiring a shorter closed length than standard agricultural drivelines. If you are unsure how to measure PTO shaft length, our engineering team will guide you through the process, accounting for telescoping travel, working angles, and three-point hitch geometry.
PTO Drive Shaft Manufacturing Process
As one of the established agricultural PTO shaft manufacturers with over two decades of production experience, our facility follows a rigorous multi-stage process for every PTO drive shaft assembly.
Raw Material Inspection and Selection
Every production batch begins with incoming material verification. PTO shaft tube stock, whether triangular or lemon profile, is inspected for wall thickness uniformity, straightness, and material certification. Standard tube material is 45# carbon steel, with 20CrMnTi alloy available for high-load applications. Yoke forgings are checked against metallurgical standards before entering the machining line.
Precision Tube Cutting and Profiling
The PTO shaft tubing is cut to length on automated saws and then cold-drawn or roll-formed into the required cross-section profile. For snow blower applications, the telescoping inner and outer tube pair must maintain tight clearance to prevent lateral play while still allowing smooth extension and retraction. Factory-cut assemblies with verified PTO shaft dimensions eliminate the risks associated with cutting a PTO shaft in the field, where measurement errors are common.
CNC Machining of Yokes and Flanges
Forged yoke blanks are loaded into CNC turning and milling centers for bore machining, spline broaching, cross-hole drilling, and face finishing. Tolerances on bearing bore diameters are held within 0.02 mm to ensure interference-fit integrity with the PTO shaft universal joint cross assembly.
Heat Treatment and Surface Hardening
Yokes, spline shafts, and clutch components undergo carburizing or induction hardening to achieve surface hardness of HRC 58-62 while retaining a tough, ductile core. This combination resists both wear from spline contact and fatigue from cyclic loading during extended snow clearing operations.
Universal Joint and Bearing Assembly
Needle-roller bearing cups are pressed into yoke bores using calibrated hydraulic presses. Each PTO shaft u joint is pre-loaded and snap-ring retained to eliminate axial play. Grease channels are verified for flow-through before sealing to ensure reliable lubrication during harsh winter service.
Shear Bolt Assembly and Calibration
PTO shaft shear bolt assemblies are torque-tested on a dynamometer to verify that the shear threshold matches the target specification for each Land Pride model. For the SB1051 and SB1064, the M8 x 50 C1.6.6 shear bolt is calibrated to break before the torque reaches damaging levels for the CAT 2 driveline. For the larger SBP1664 through SBP1684 series, the M10 x 1.5 x 60 bolt provides a higher shear threshold matched to the CAT 3 rating.
Surface Finishing and Anti-Corrosion Treatment
All exposed metal surfaces receive zinc electroplating, powder coating, or industrial paint depending on customer specification and the operating environment. For snow blower applications in northern climates where road salt exposure is constant, we apply a thicker zinc layer and seal all tube joints to prevent internal corrosion during storage and operation.
Final Assembly, Inspection, and Packaging
Completed PTO drive shafts are assembled to full length, tested for telescoping action, and inspected for runout and balance. Each unit is tagged with a serial number, packed with spare shear bolts, and shipped in reinforced cartons or wooden crates for international delivery.

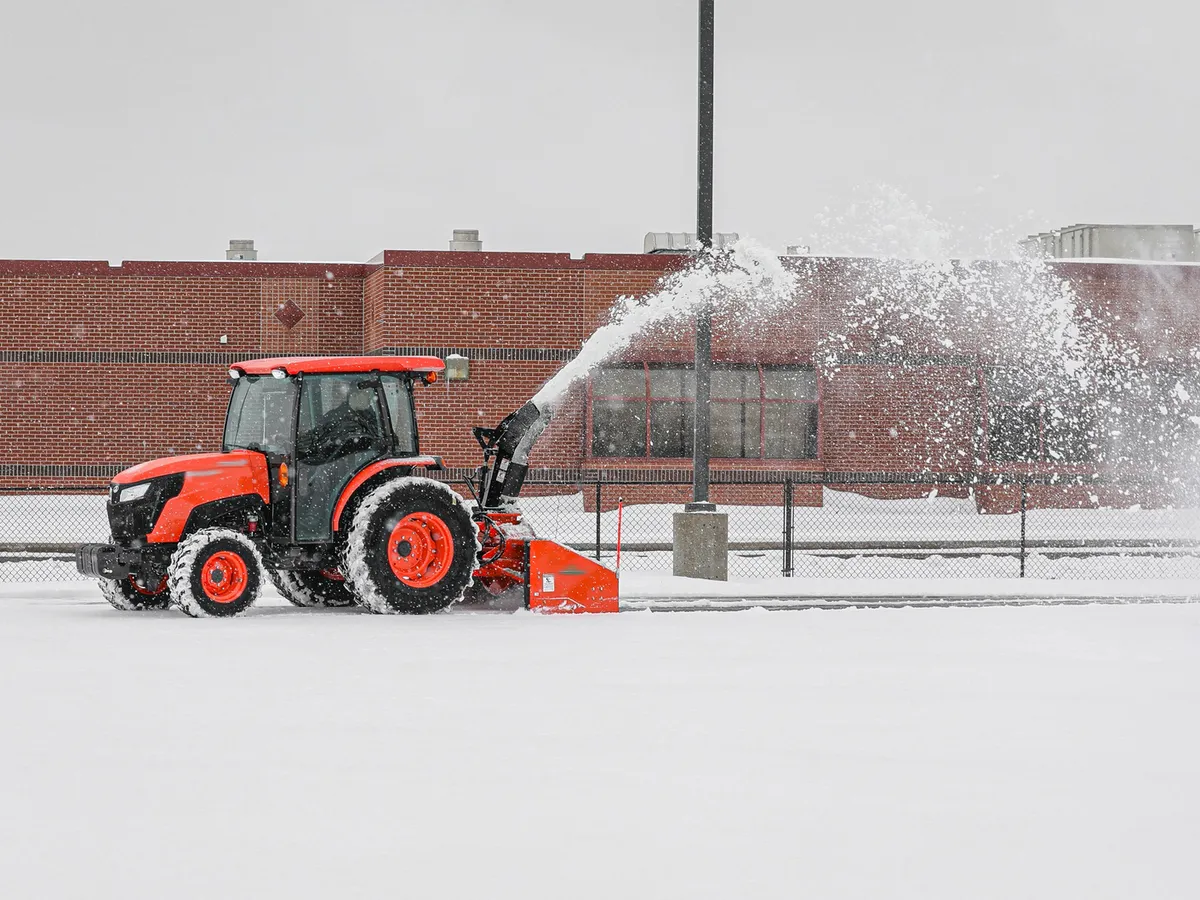

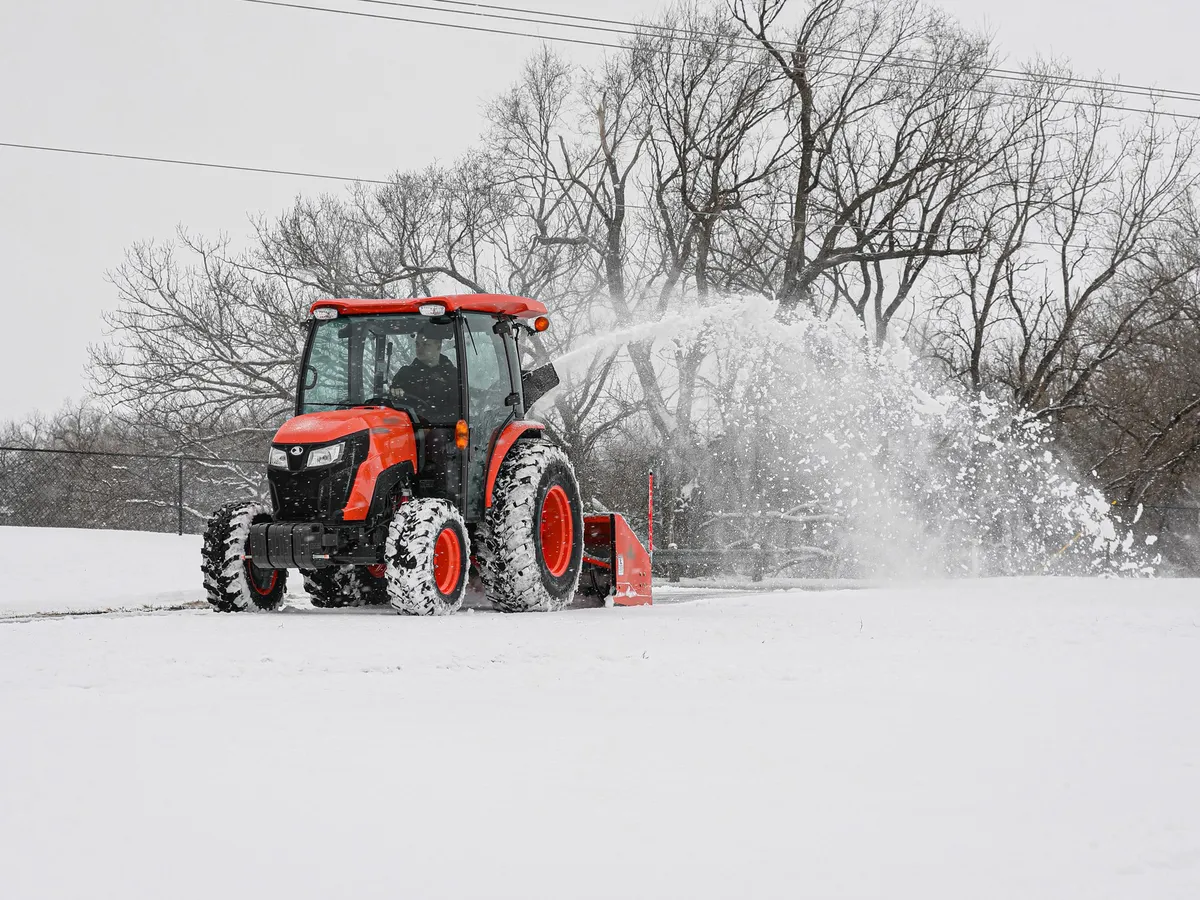

Typical Industry Applications

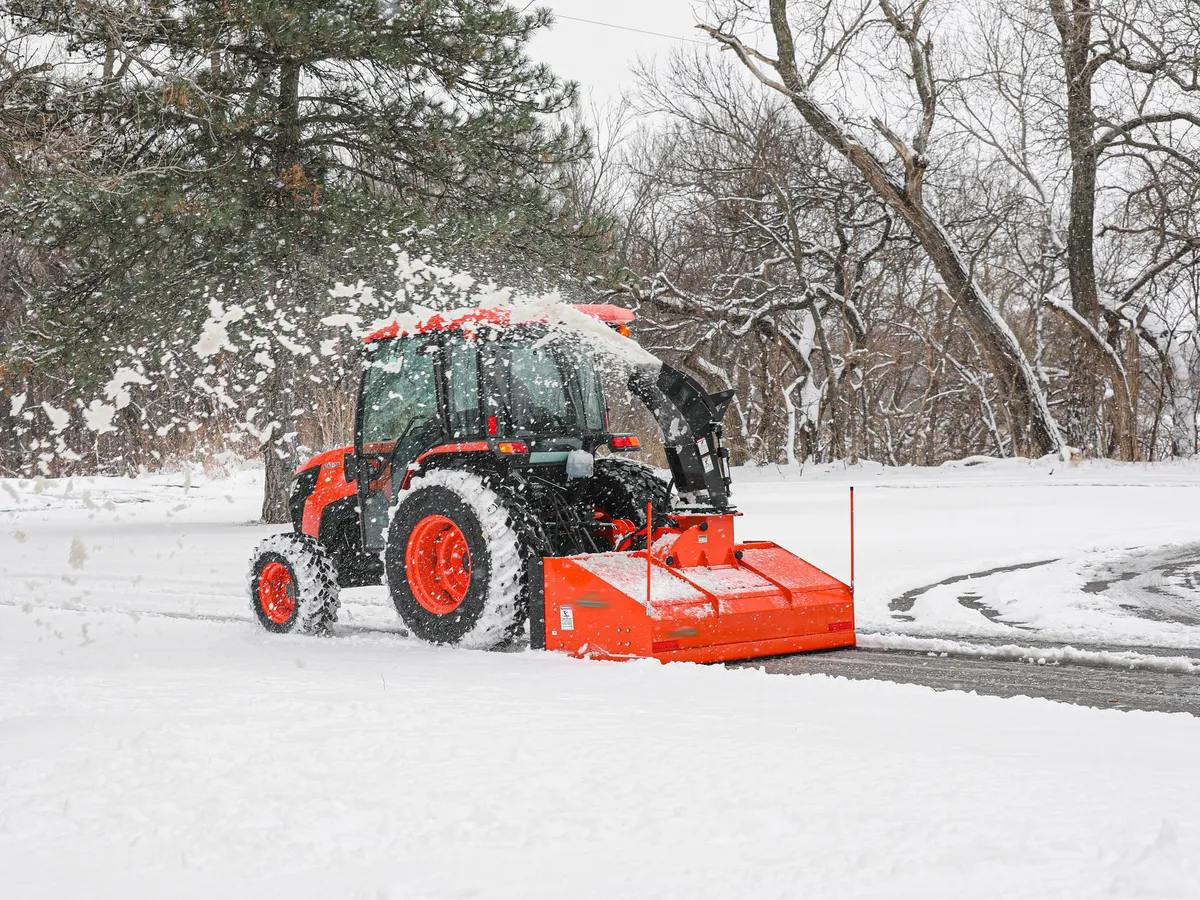

Roadway Snow Removal
Municipal highway departments and contracted road crews across Canada, the northern United States, and Scandinavian countries rely on tractor-mounted snow blowers to clear county roads, rural highways, and mountain passes after heavy storms. The tractor PTO drive shaft connects the tractor engine to the snow blower auger, enabling continuous high-volume snow displacement at throwing distances of 30 to 50 feet. For roadway work, a heavy duty PTO shaft with reinforced universal joints is recommended because the snow often contains gravel, chunks of ice, and compacted debris from passing traffic.
Driveway Snow Removal
Rural homeowners and small-acreage landowners with long driveways use compact tractor snow blowers like the Land Pride SB1051 and SBP1164 for efficient residential clearing. A properly matched PTO shaft for snowblower equipment on a 25 to 45 HP sub-compact tractor handles moderate snowfall depths with ease, keeping residential access routes open throughout the winter season.
Parking Lot Snow Removal
Commercial property managers and snow removal contractors clearing shopping center parking lots, hospital access areas, and office complex lots depend on mid-size to large snow blowers like the SBP1674 or SB2584. These machines cover wide areas quickly, and the PTO shaft for snow blower assembly must withstand hours of continuous operation in dense, wet snow conditions. The PTO shaft with slip clutch option is particularly valuable in parking lots where buried curb stops and wheel chocks present hidden hazards.
Yard and Property Maintenance
Agricultural operations, estates, and institutional campuses use tractor-mounted snow blowers for clearing yards, equipment staging areas, and access paths around buildings. The compact PTO shaft tractor configuration on a sub-compact or utility tractor is ideal for navigating tight spaces around barns, garages, and fenced areas.
Sidewalk Snow Removal
Municipalities and universities in cold-climate regions such as Finland, Sweden, and the northern United States deploy compact tractor snow blowers on paved sidewalks, bike paths, and pedestrian walkways. The narrower Land Pride SB1051 (51-inch width) pairs well with a compact tractor and a short-length agricultural PTO shaft, making it maneuverable enough to clear paths without damaging adjacent landscaping or infrastructure.
Farmstead Snow Removal
Dairy farms, livestock operations, and grain facilities must keep feed alleys, equipment yards, and barn access roads clear of snow to maintain daily operations. A reliable PTO shaft for Land Pride snow blower on the farm tractor ensures that feed trucks, milk tankers, and veterinary vehicles can reach the buildings safely during winter storms. Having spare PTO shaft parts and extra shear bolts on hand is standard practice for operations where downtime directly affects animal welfare.
Airport and Airfield Maintenance
Regional airports and private airstrips use tractor-mounted snow blowers to clear taxiways, aprons, and runway shoulders. The wide-format Land Pride SBP1684 (84-inch width) behind a high-horsepower utility tractor provides the clearing capacity needed to meet aviation safety standards. A custom PTO shaft built to precise length specifications ensures safe and efficient power transfer in this demanding application.

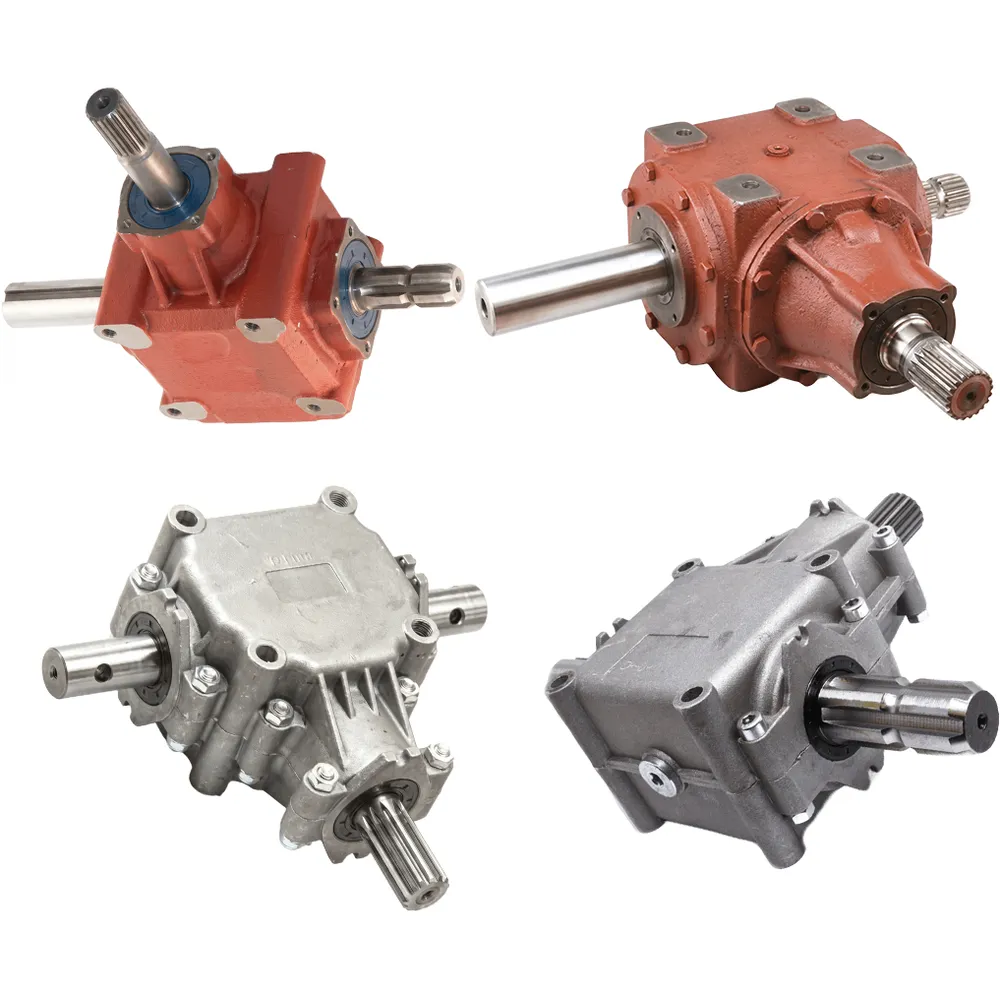

The Connection Between Snow Blower PTO Shafts and Snow Blower Gearboxes
The snow blower PTO shaft and the snow blower gearbox form the two most critical power transmission components in any tractor-mounted snow blowing system. Understanding how these two parts interact is essential for proper specification, maintenance, and troubleshooting.
The PTO shaft delivers rotational power at 540 RPM from the tractor’s power take-off stub to the input shaft of the snow blower gearbox. The gearbox serves two primary functions. First, it redirects the rotational axis by 90 degrees, converting the horizontal driveline rotation into a vertical or angled output that drives the auger assembly. Inside the gearbox, a pair of spiral bevel gears or worm gears handles this directional change. Second, the gearbox may provide a speed reduction or speed increase, depending on the snow blower design, to optimize the auger rotation speed for the target snow conditions.
The auger speed directly affects throwing distance, snow compaction, and the machine’s ability to handle wet, heavy snowfall versus light, dry powder. A mismatch between the PTO shaft torque delivery and the gearbox input rating creates a weak point in the system. If the PTO driveline shaft transmits more torque than the gearbox gears can handle, teeth can crack, bearings can seize, and the output shaft can twist. This is precisely why the shear bolt PTO shaft or PTO shaft with slip clutch overload protection is so important. The shear bolt acts as a mechanical fuse, breaking before destructive torque levels reach the gearbox internals.
On Land Pride snow blowers, the gearbox uses SAE 80-90W or SAE 90W gear lube and requires periodic oil level checks and seasonal oil changes. The input spline on the gearbox must match the PTO shaft yoke bore exactly for a secure, zero-backlash connection. When replacing either the PTO shaft or the gearbox, it is critical to verify that the input spline count, diameter, and PTO category rating are identical between the two components. We supply complete driveline-and-gearbox packages that are pre-matched for specific snow blower models, eliminating compatibility guesswork and reducing the risk of mismatched components.
Real-World Customer Case Studies
Case 1: Municipal Road Department, Alberta, Canada
Customer: Dave Burgess, Equipment Maintenance Supervisor, County of Vermilion River Public Works
Application: Rural road clearing across 420 km of county grid roads using four Land Pride SB2584 snow blowers mounted on 95 HP utility tractors.
How they found us: Dave’s crew had been sourcing OEM replacement drivelines through their local Kubota dealership, but lead times stretched to 4-6 weeks during peak winter demand. A fellow county manager in Saskatchewan recommended our products in November 2024 after a trade show conversation. Dave sent an email inquiry the following week.
Result: We supplied 8 complete CAT 3 shear bolt PTO shaft assemblies with reinforced zinc plating for salt exposure. The units were delivered to Edmonton via ocean freight and domestic trucking in 22 days. After 14 months and over 3,800 combined operating hours, only one shaft required a universal joint replacement, which was completed in under 30 minutes using our supplied spare parts kit.
“Lead time was half of what our dealer was quoting, and the price was about 35% less per unit. We keep two spares in our shop now, and that has been more than enough for the entire fleet. Solid product, no complaints.”
Case 2: Dairy Farm, Wisconsin, USA
Customer: Tom and Linda Kessler, Owners, Kessler Family Dairy (180-head Holstein operation)
Application: Farmstead clearing using a Land Pride SBP1174 snow blower on a 45 HP compact utility tractor. Primary use is keeping feed alleys, barn access roads, and milk truck loading areas passable from November through March.
How they found us: Linda searched for “PTO shaft for Land Pride snow blower” on Google after their existing driveline failed mid-January 2025. The local farm supply store was out of stock with no reorder date available. She submitted an online inquiry on a Friday afternoon and received a quotation by Monday morning.
Result: One CAT 1 shear bolt PTO shaft assembly, shipped via air freight to Milwaukee and delivered to the farm in 11 days. Tom installed the shaft himself using our included measurement and installation guide.
“We needed that shaft yesterday, not in six weeks. Your team got it to us fast, and the quality is just as good as the original. The spare shear bolts you included in the box were a nice touch too.”
Case 3: Snow Removal Contractor, Oslo, Norway
Customer: Erik Haugen, Owner, Haugen Vinterservice AS
Application: Commercial parking lot and industrial yard clearing using three tractor-mounted snow blowers (two SBP1674 and one SBP1684 equivalent) across the greater Oslo metropolitan area.
How they found us: Erik was sourcing aftermarket PTO shafts from a European distributor but found the pricing increasingly uncompetitive. He discovered our product catalog through an industry contact at a Nordic agricultural machinery fair in March 2025 and requested sample units for testing.
Result: We supplied two sample CAT 3 driveline assemblies with heavy zinc plating and sealed tube ends. After a successful trial season with over 600 hours of operation per unit, Erik placed a bulk order for 12 assemblies in August 2025 to stock his entire fleet and spare parts inventory for the upcoming winter.
“Norwegian winters test everything to its limit. Your shafts ran through the entire season with zero failures, which is not something I can say about what we were using before. The sealed tube ends were especially important for us since our machines sit outside between jobs.”
Case 4: Regional Airport, Quebec, Canada
Customer: Jean-Marc Tremblay, Facilities Manager, Aeroport de Mont-Joli
Application: Taxiway and apron snow clearing using a Land Pride SBP1684 behind a 90 HP tractor. The airport averages 310 cm of snowfall per season and must maintain cleared surfaces to meet Transport Canada standards.
How they found us: Jean-Marc contacted us through our website in October 2025 after receiving a recommendation from a snow removal equipment dealer in Quebec City who stocks our products.
Result: One complete CAT 3 driveline with slip clutch upgrade, custom-shortened to 34 inches closed length to accommodate the airport tractor’s short PTO-to-implement distance. Delivered in 19 days.
“The custom length option was exactly what we needed. Standard shafts were always too long, and cutting PTO shaft tubing on site was something our maintenance crew was never comfortable doing. Your factory-built assembly fit perfectly the first time.”
Case 5: Landscaping Company, Minnesota, USA
Customer: Mike Andersen, Operations Manager, North Star Landscape and Snow LLC
Application: Residential and commercial driveway clearing using two Land Pride SB1064 snow blowers on 40 HP compact tractors.
How they found us: Mike found our website while searching for “replacement of Land Pride PTO shaft” in September 2024. He ordered one test unit and was impressed enough to order a second within two months.
Result: Two CAT 2 shear bolt PTO shaft assemblies delivered in 14 days to Minneapolis. Both units have completed two full winter seasons totaling approximately 1,200 operating hours with no mechanical issues.
“I have been buying aftermarket PTO shafts for years, and these are among the best I have used. The fit, finish, and included safety guarding are exactly what I expect from a quality PTO shaft supplier. Will be ordering again.”
Case 6: University Campus, Helsinki, Finland
Customer: Janne Virtanen, Grounds Maintenance Coordinator, University of Helsinki
Application: Campus sidewalk and path clearing using a compact tractor with a Land Pride SB1051 snow blower, covering approximately 8 km of pedestrian pathways.
How they found us: Janne contacted us through a referral from a Finnish agricultural machinery importer in January 2026 after struggling to find CAT 2 replacement drivelines locally.
Result: Two CAT 2 shear bolt PTO shaft assemblies with extra-thick zinc coating for salt resistance. Delivered to Helsinki port in 25 days. The university grounds team completed installation the same day.
“Finding the right PTO shaft sizes for older compact tractors in Finland is not easy. Your team identified the correct spline configuration from the photos I sent, and both shafts fit without any modifications needed.”
Common Fault Diagnosis and Troubleshooting
| Symptom | Likely Cause | Corrective Action |
|---|---|---|
| Vibration at operating speed | Worn U-joint bearings, bent tube, or unbalanced shaft | Inspect and replace worn universal joints. Check tube straightness. Verify the PTO shaft guard is not binding against the rotating shaft. |
| Shear bolt breaks repeatedly | Incorrect bolt grade installed, hidden obstructions in snow, or auger bearings seizing | Verify correct shear bolt grade per the Land Pride model specification. Survey the clearing area for hidden objects. Check auger bearing condition and lubrication. |
| Clicking or knocking noise | Worn splines on the yoke or tractor PTO stub shaft | Inspect spline engagement depth. Replace the PTO shaft yoke or PTO shaft adapter if spline teeth are visibly rounded or chipped. |
| Shaft will not telescope smoothly | Corrosion, ice buildup, dirt ingress, or lack of grease on inner tube | Disassemble, clean, and re-grease the telescoping section with anti-seize compound. Check tube seal condition at both ends. |
| PTO shaft guard overheating | Guard bearing cones seized or guard contacting the rotating shaft | Replace bearing cones. Verify the PTO shaft cover rotates freely and is properly centered. Clear any ice or debris from the guard interior. |
| Loss of power or auger stalls | Broken shear bolt, failed U-joint, or gearbox internal fault | Check shear bolt condition first. If intact, inspect both U-joints for freedom of movement. If the driveline is functional, check gearbox oil level and gear condition. |
| Excessive noise from driveline | Dry universal joint bearings, misaligned shaft, or worn tube profiles | Grease all U-joint fittings. Verify tractor-to-implement alignment. Inspect inner and outer tube profiles for wear or deformation. |
How to Choose the Right PTO Shaft for Your Snow Blower
Selecting the correct PTO shaft for snow blower equipment involves matching several key parameters between your tractor and implement. Follow these steps to avoid costly mistakes and ensure safe, efficient operation:
Step 1: Identify your tractor PTO output spline. Count the number of spline teeth and measure the shaft diameter. The most common configuration for snow blowers is 1-3/8″ with 6 splines, which covers the majority of compact and utility tractors from John Deere, Kubota, New Holland, and Massey Ferguson. Some larger tractors use 1-3/8″ with 21 splines. A quick visual inspection or a check of your tractor manual will confirm the correct spline type.
Step 2: Confirm the PTO speed. All Land Pride snow blowers operate at 540 RPM. Running a 1000 rpm PTO shaft on a snow blower designed for 540 RPM will overspeed the auger and impeller, creating a severe safety hazard. If your tractor has a dual-speed PTO (540/1000), verify that it is set to the 540 RPM position before engaging.
Step 3: Determine the required PTO category. CAT 1 covers the lighter SBP1164 and SBP1174 models. CAT 2 fits the SB1051 and SB1064. CAT 3 is required for the larger SB1574, SB2584, SBP1664, SBP1674, and SBP1684. The PTO category dictates the cross and bearing size, tube profile, and yoke rating of the shaft assembly.
Step 4: Measure the required shaft length. With the snow blower hitched to the tractor in the working position and the PTO disengaged, measure the distance from the end of the tractor PTO stub to the gearbox input shaft. Account for at least 4 to 6 inches of telescoping travel to handle tractor turns and three-point hitch movement. If you need guidance on how to measure PTO shaft length correctly, send us a photo and measurement sketch and our team will confirm the specification.
Step 5: Select overload protection. Shear bolt protection is standard and sufficient for most residential and moderate-duty commercial applications. For heavy commercial use where frequent overloads are expected, consider the PTO shaft with slip clutch upgrade to avoid repeated stops for bolt replacement.
Step 6: Specify optional features. These may include a PTO shaft adapter for non-standard spline conversions, upgraded surface treatment for extreme salt exposure environments, or a spare parts kit with additional shear bolts, U-joint assemblies, and grease fittings.
Frequently Asked Questions
What PTO category do I need for a Land Pride SBP1684 snow blower PTO shaft?
Can I upgrade from a shear bolt to a slip clutch PTO shaft on my snow blower?
How often should I grease the universal joints on my snow blower PTO shaft?
What is the correct shear bolt grade for a Land Pride SB1064 snow blower driveline?
Do you offer custom PTO shaft assemblies for non-standard tractor configurations?
What is the minimum order quantity for wholesale purchases of snow blower PTO shafts?
Can I buy a replacement PTO shaft guard and cover separately from the driveline assembly?
Do you ship PTO drive shafts to Canada, Scandinavia, and Russia?
How do I measure PTO shaft length correctly when ordering a replacement for my snow blower?
What warranty do you provide on your snow blower PTO shaft assemblies?
Ready to Get the Right PTO Shaft for Your Snow Blower?
Whether you need a single replacement PTO driveline shaft for snow blower applications or a bulk order of custom PTO shaft assemblies for an entire fleet, we are here to help. As experienced agricultural PTO shaft manufacturers, we deliver precision-built drivelines matched to your exact machine, your operating environment, and your budget.
We welcome custom orders for all Land Pride snow blower models and cross-compatible equipment. Send us your tractor model, snow blower model, spline details, and required shaft length. Our engineering team will respond with a detailed quotation and technical specification within 24 hours.
